CYBG

CFB Bagotville

Charts Mandatory Routes
ICAO Code CYBG
IATA Code YBG
Name CFB Bagotville
Location Bagotville, Quebec, CA
Elevation 522 Feet / 159.1 Meters
Latitude 48.33055556
Longitude -70.99638889
METAR CYBG 291500Z CCA 00000KT 1/2SM R11/P6000FT/N FG VV002 01/01 A3036 RMK FG8 DENSITY ALT -1527FT VIS VRB 1/4-3/4 SLP291

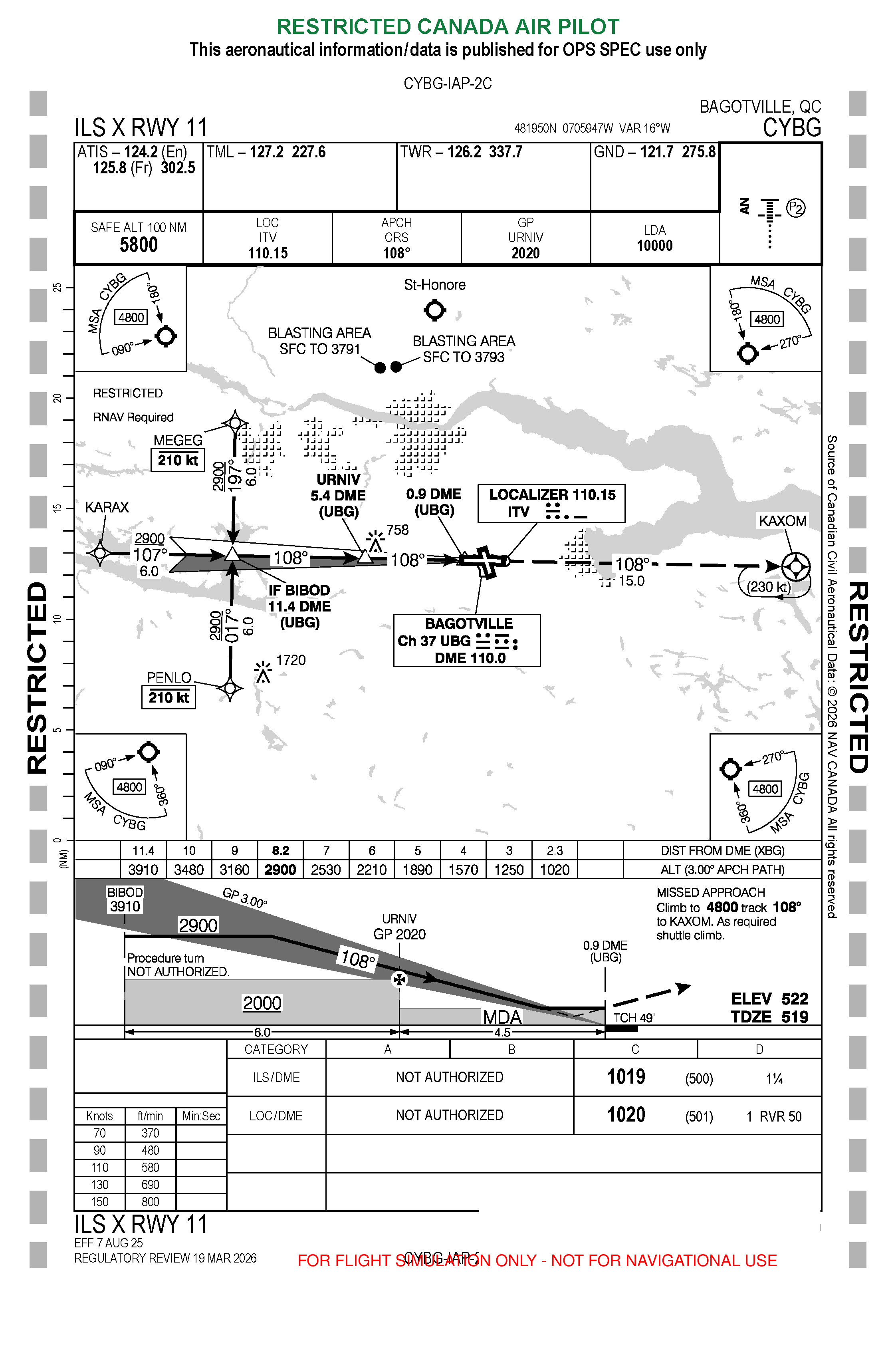

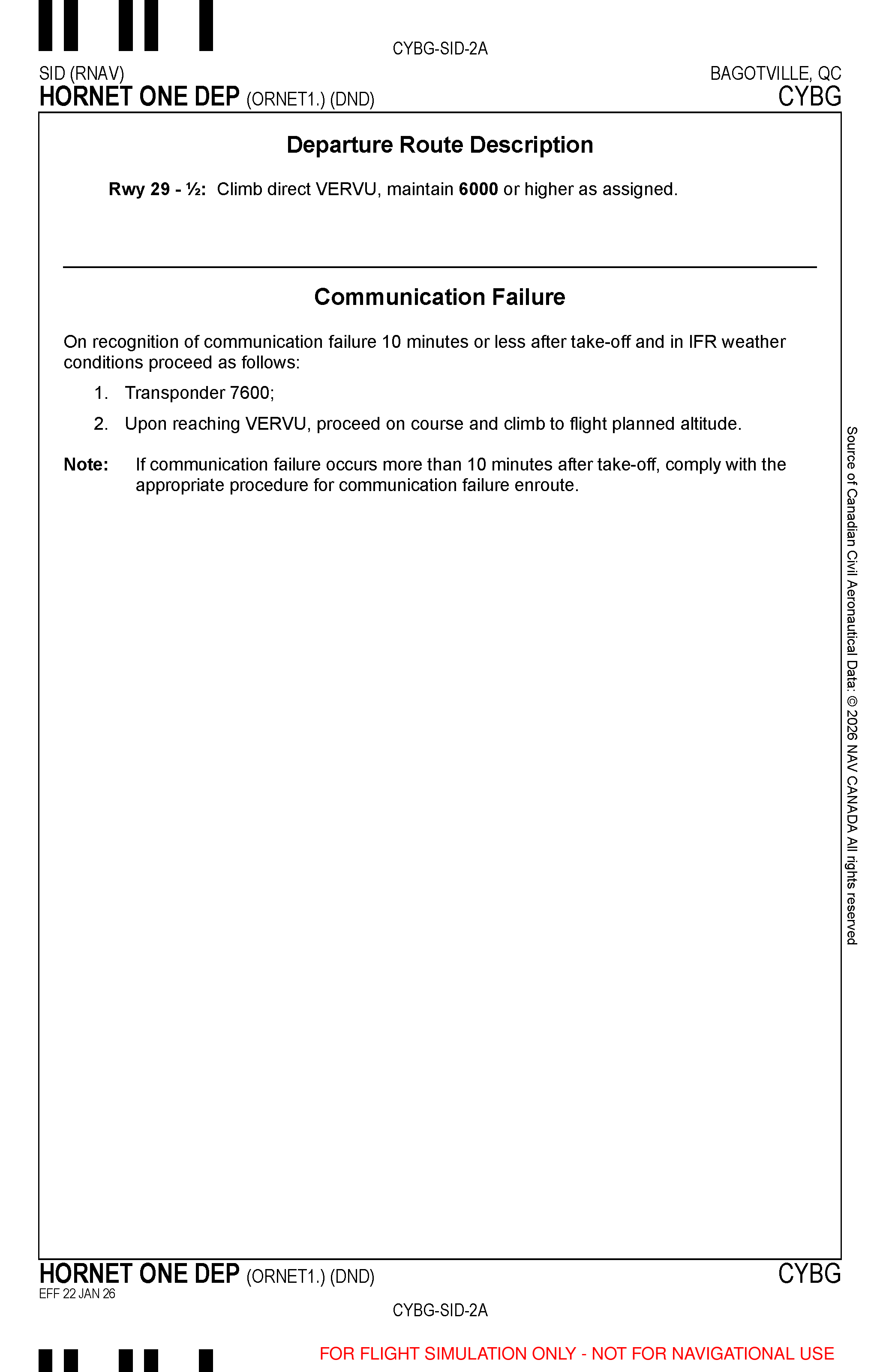

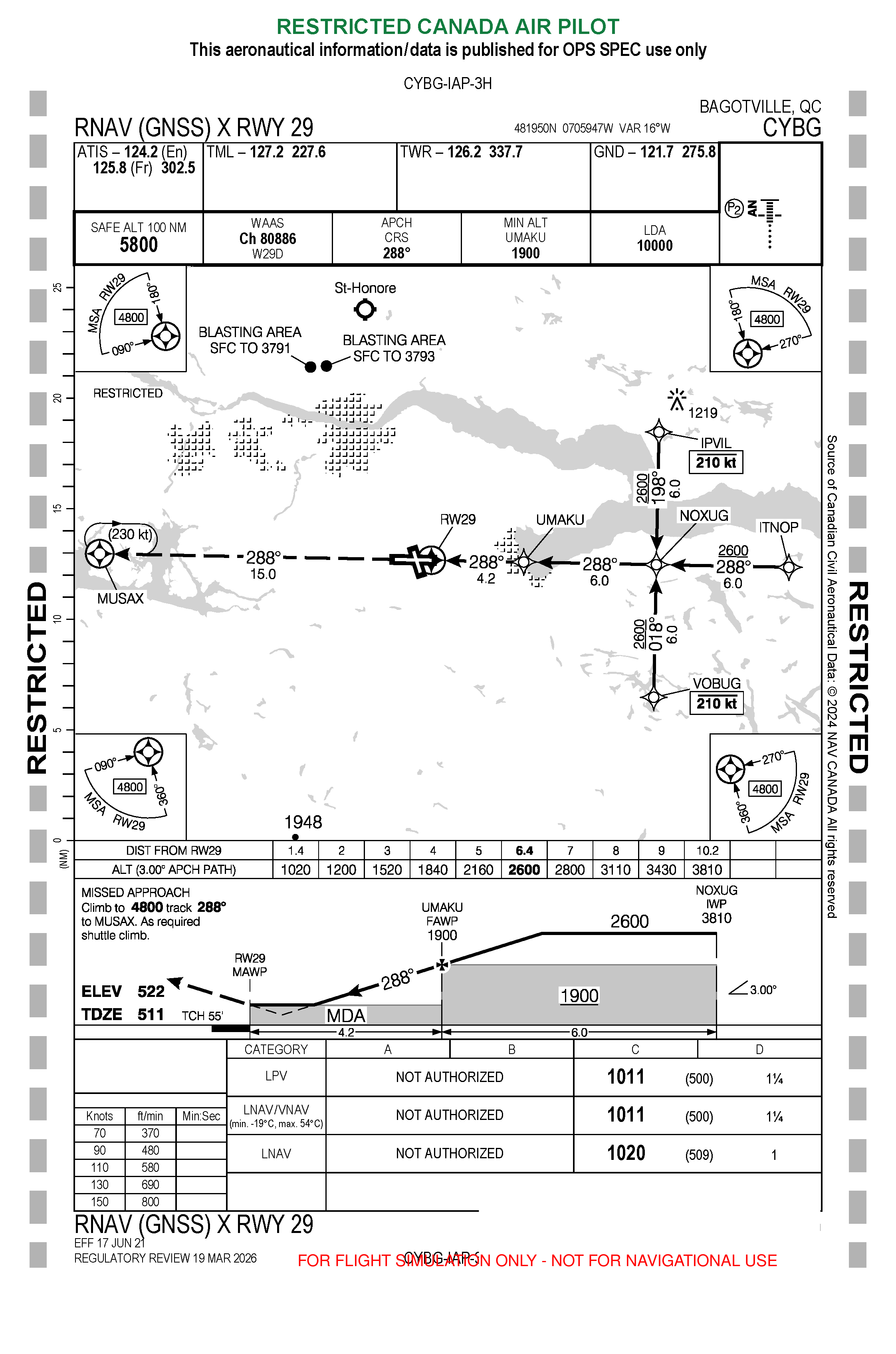

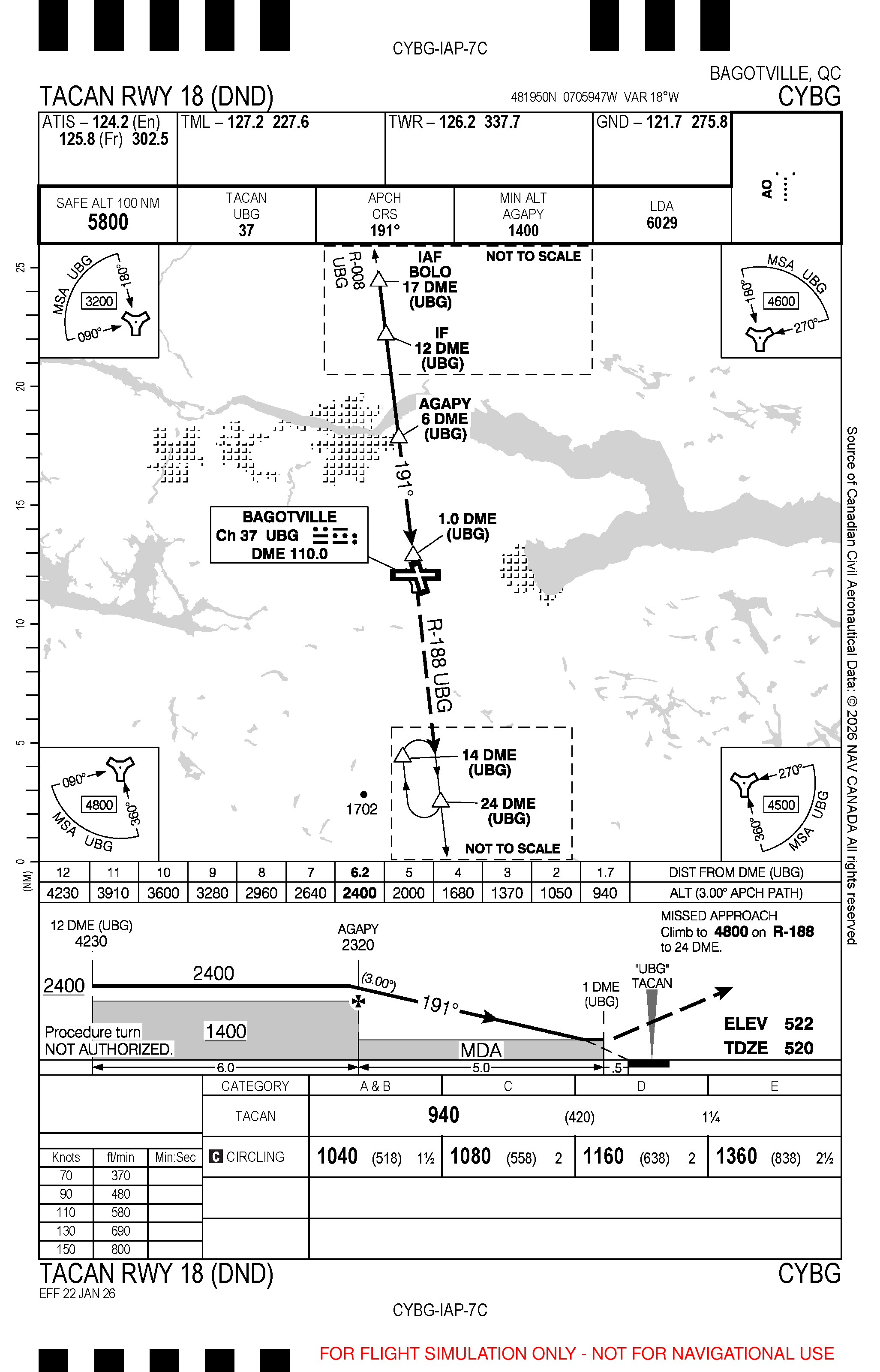

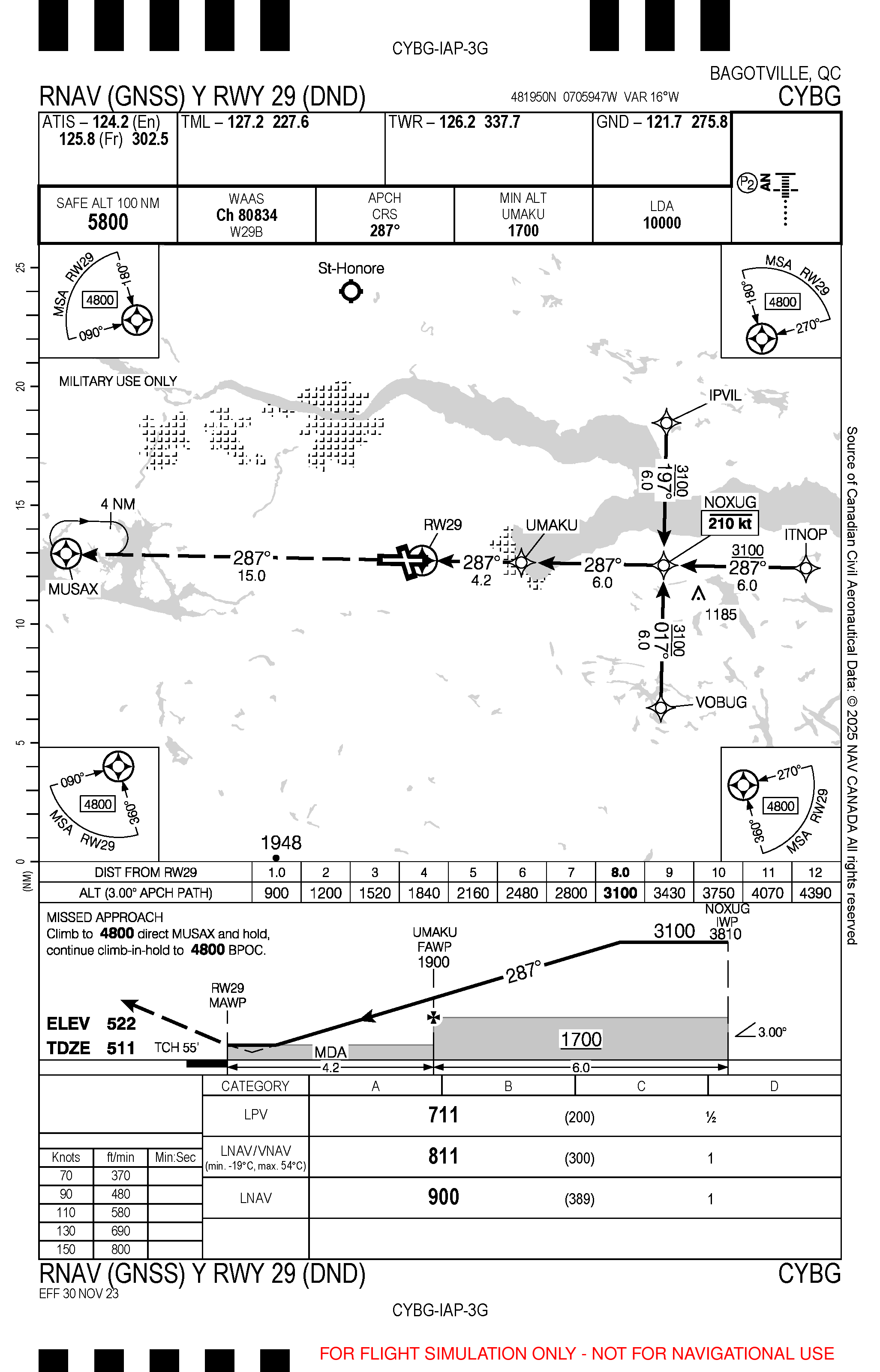

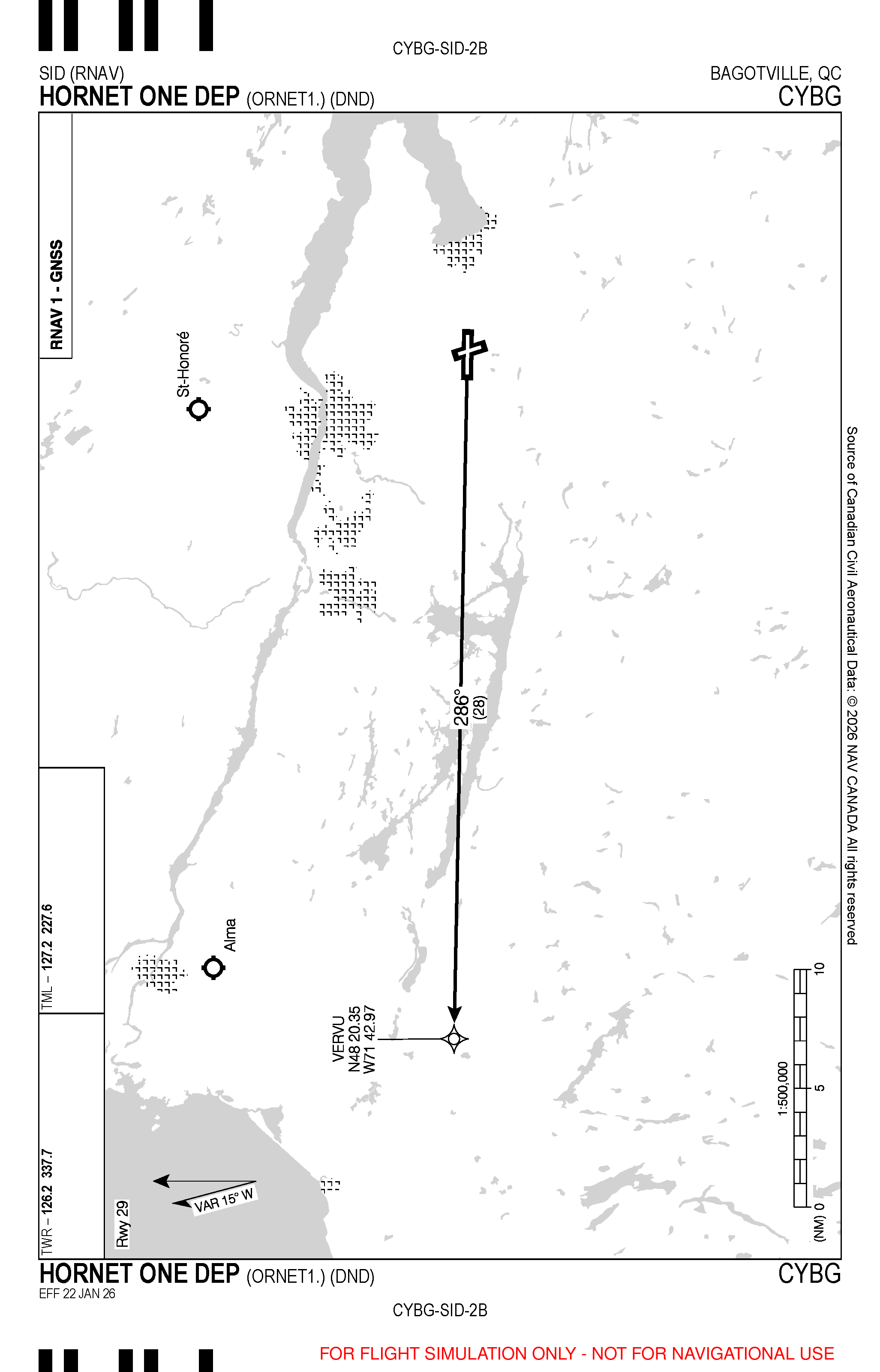

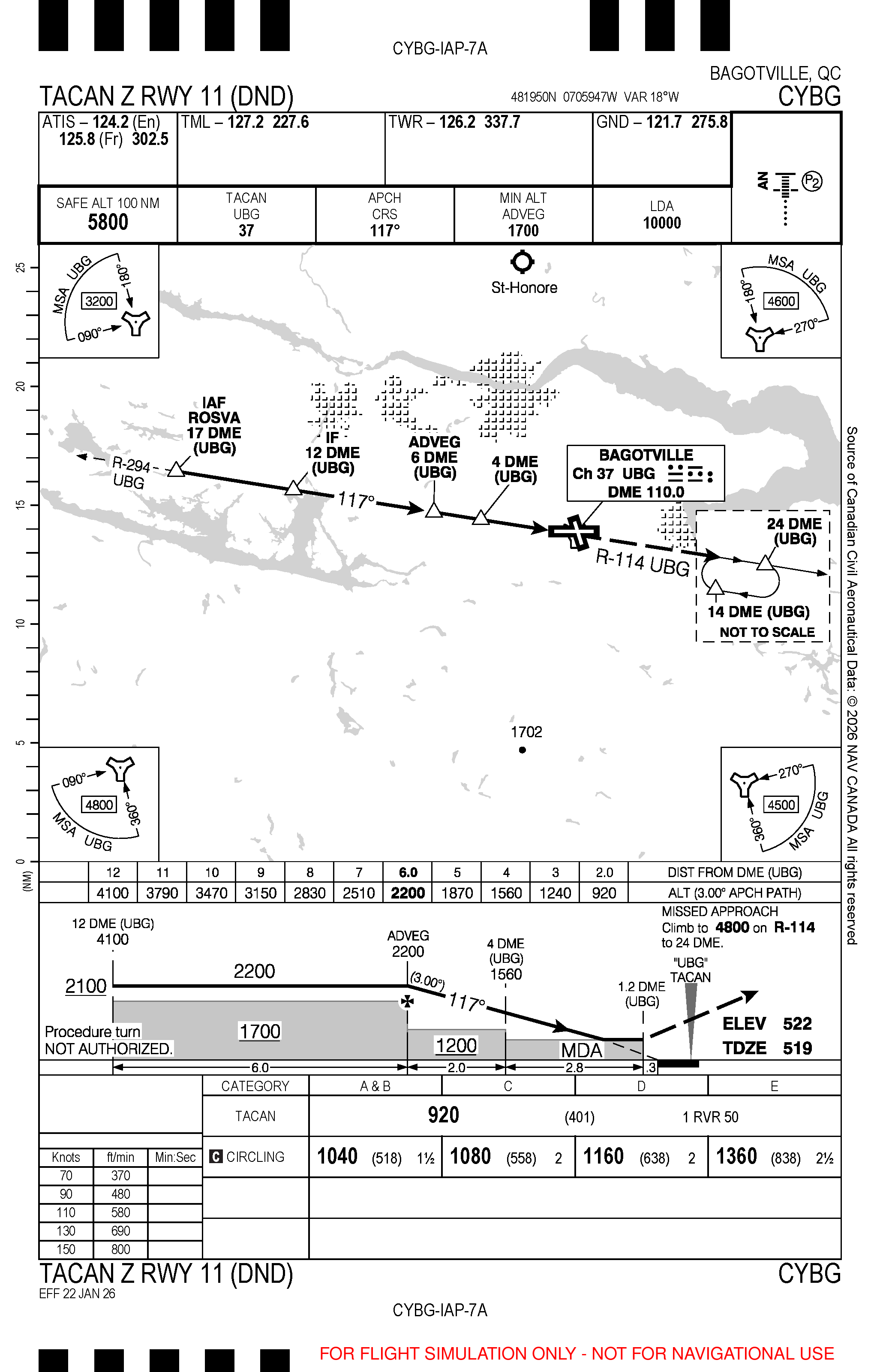

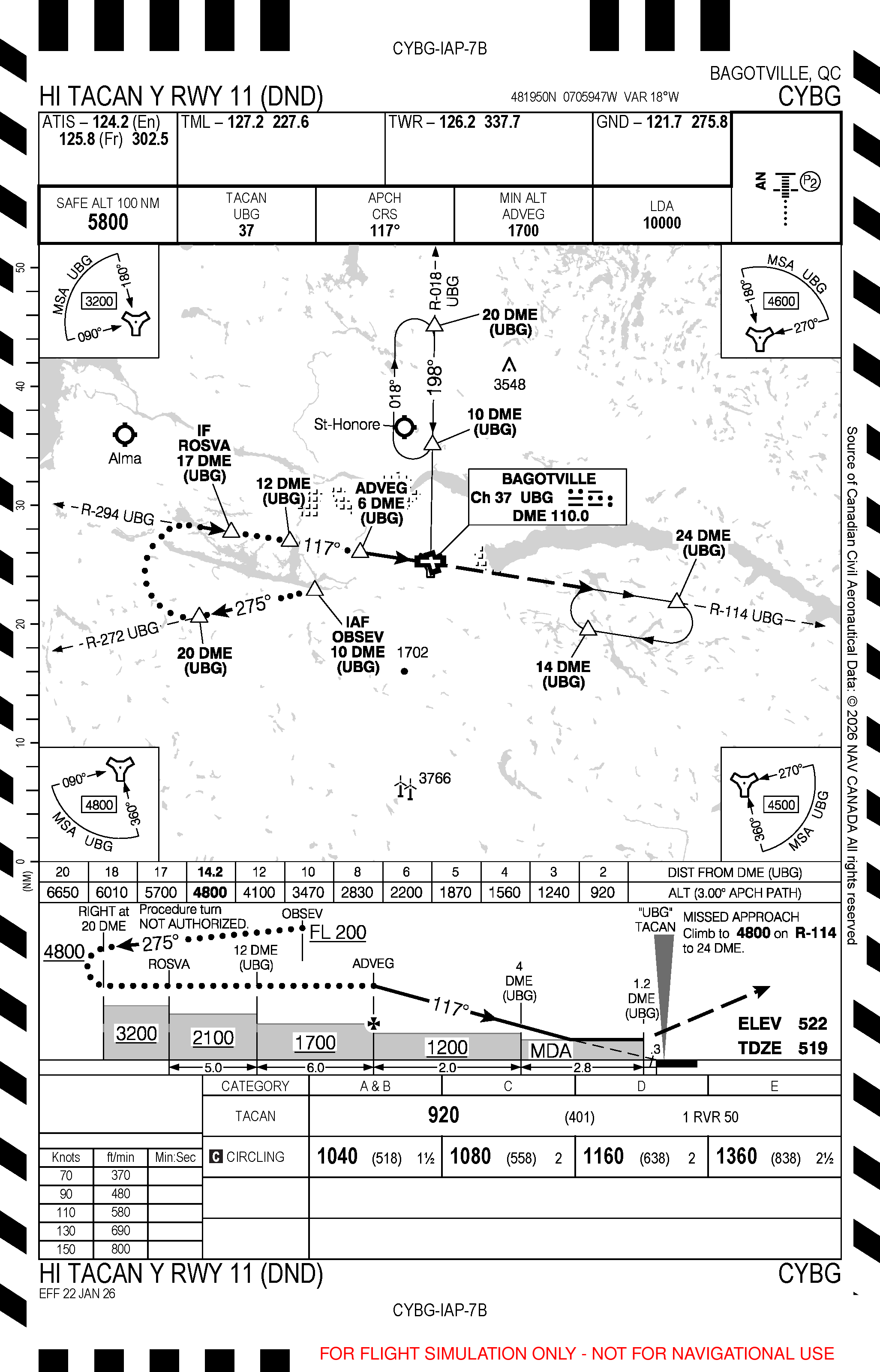

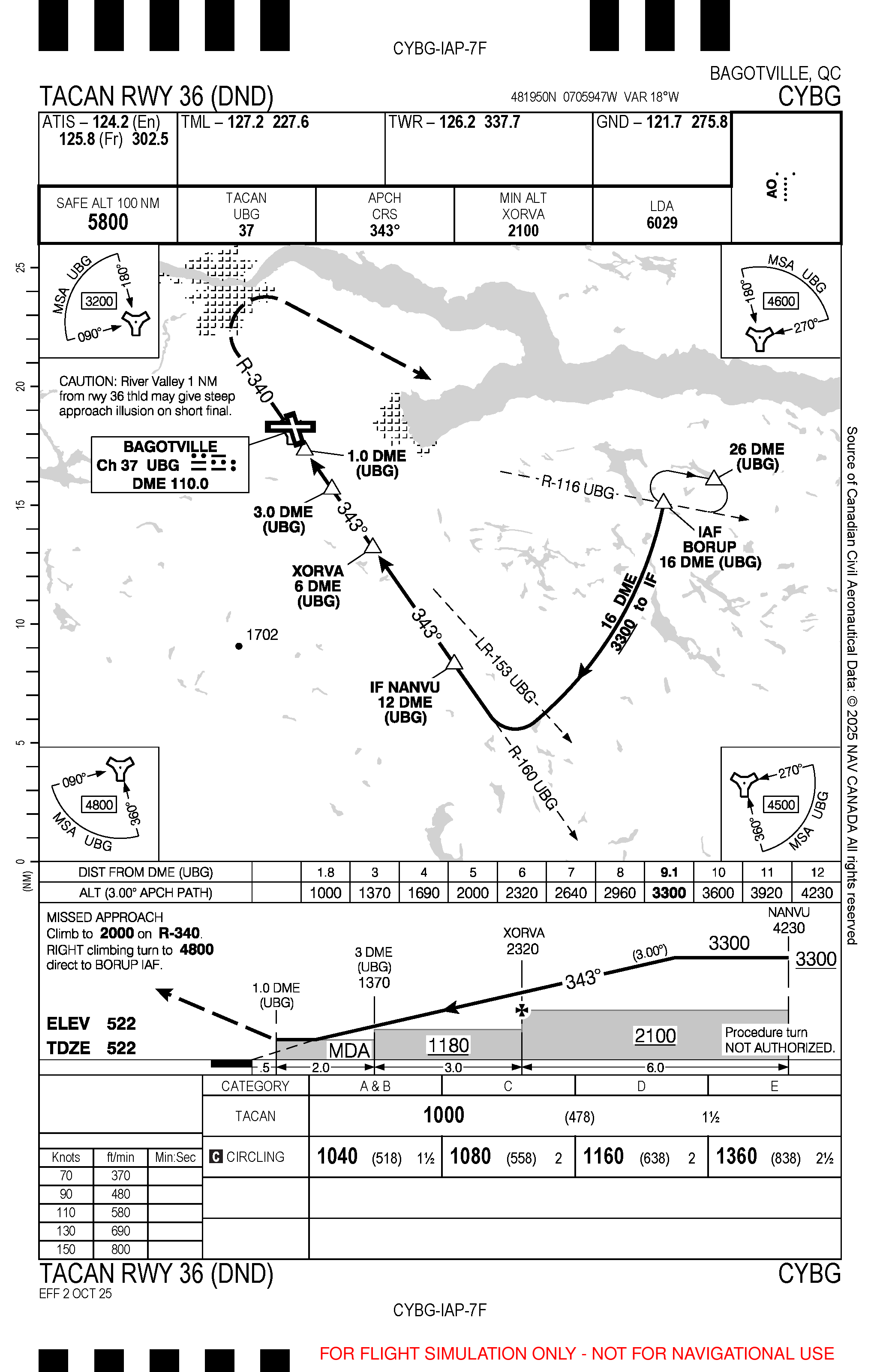

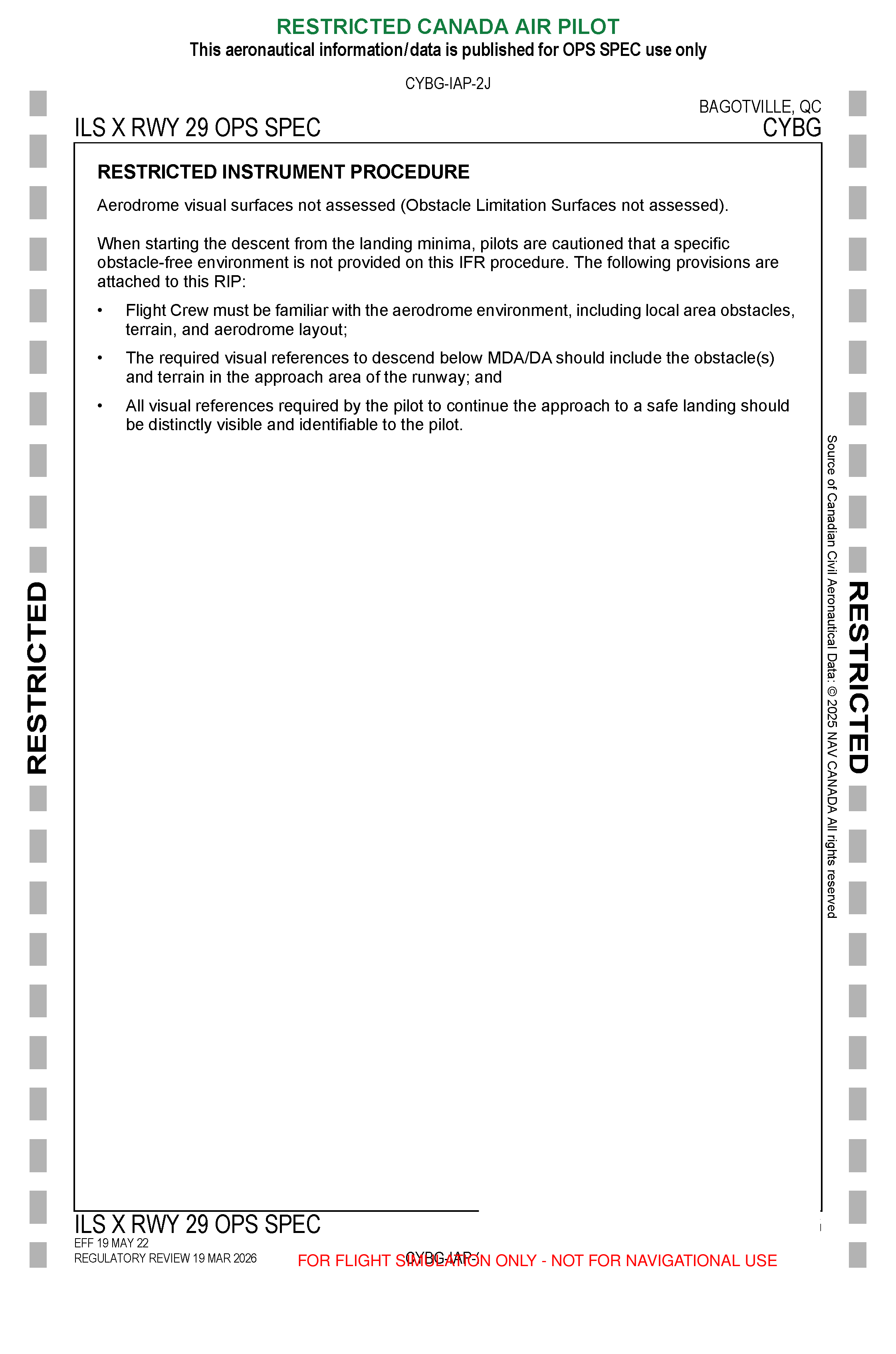

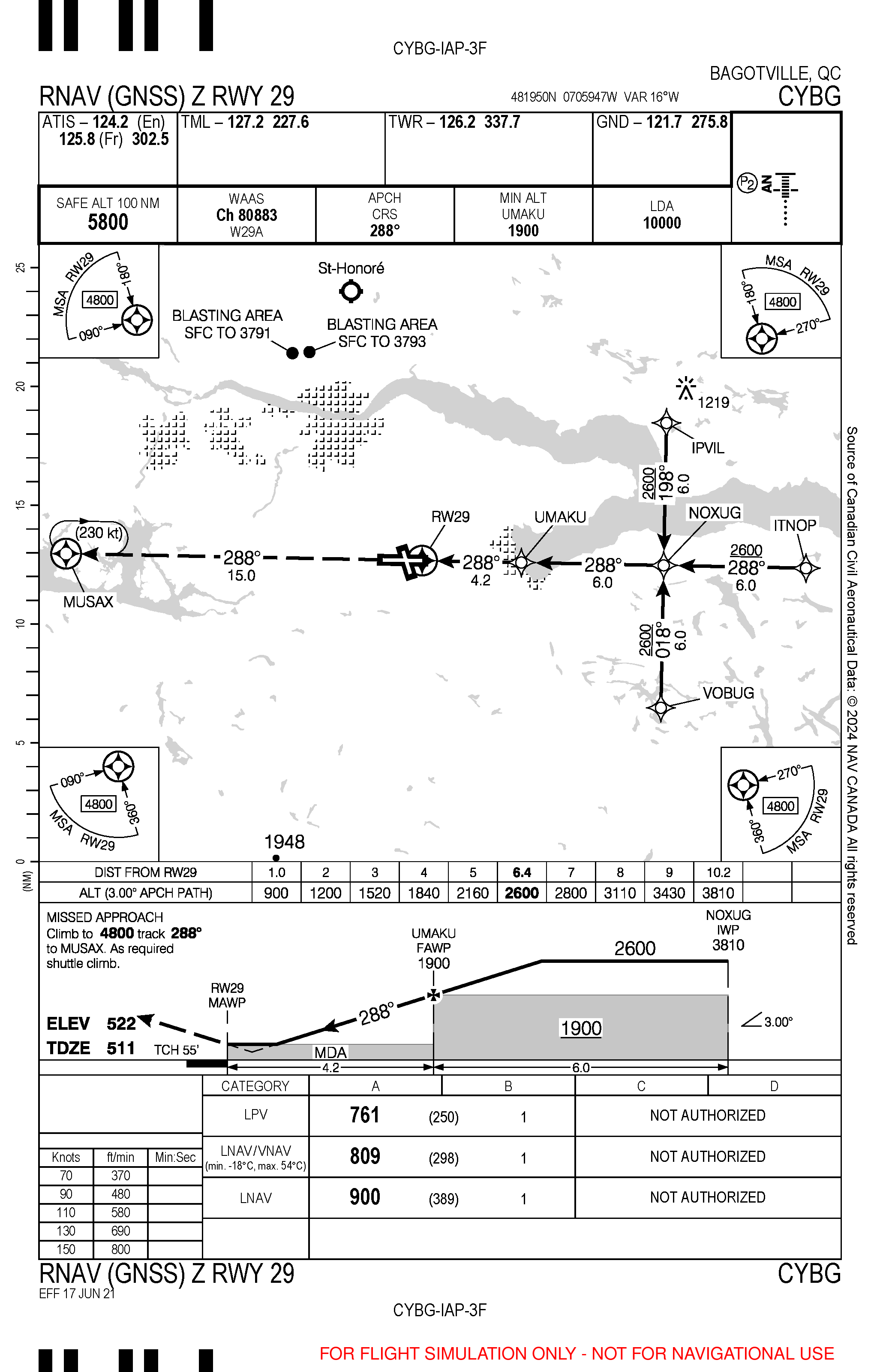

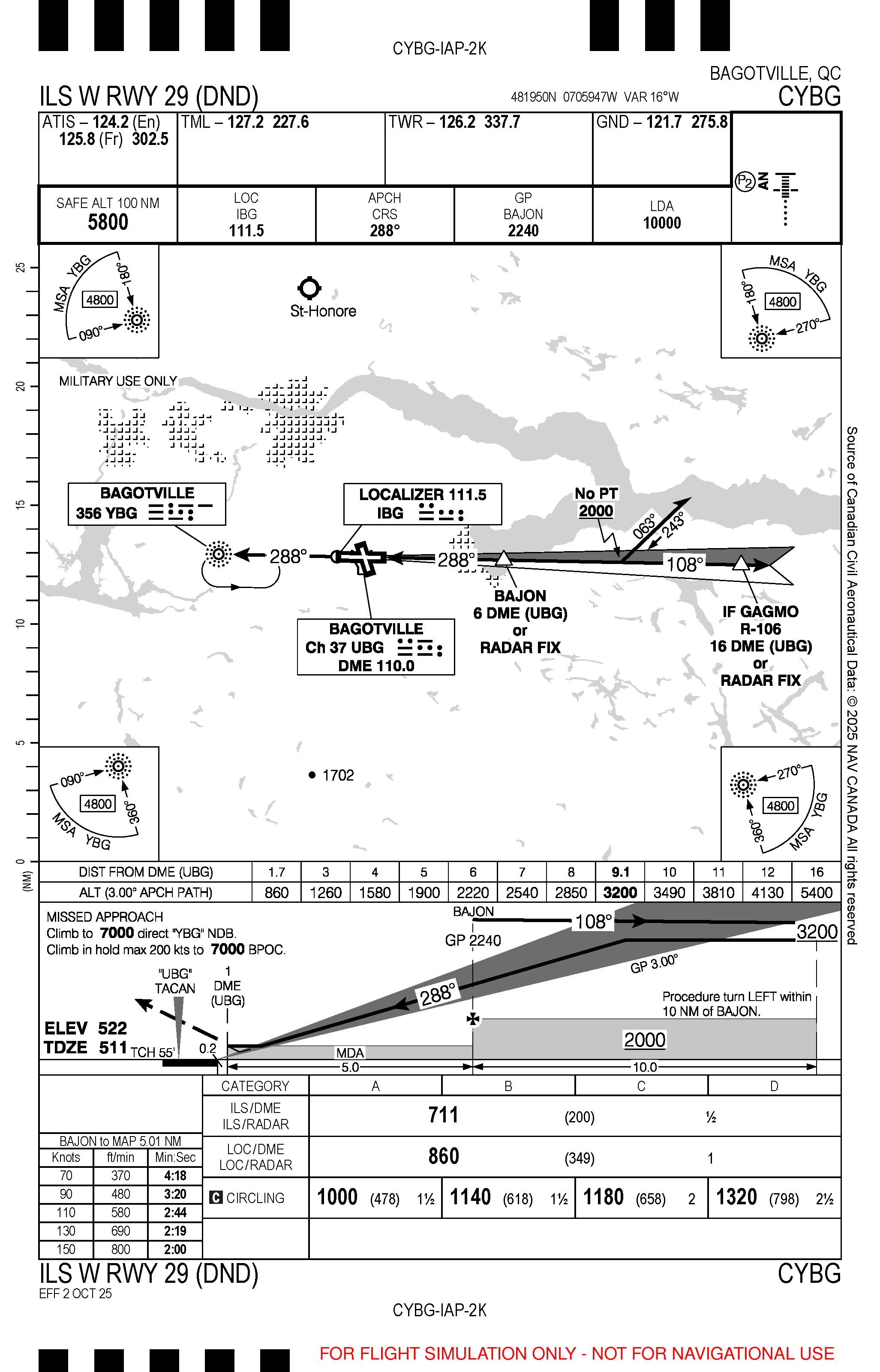

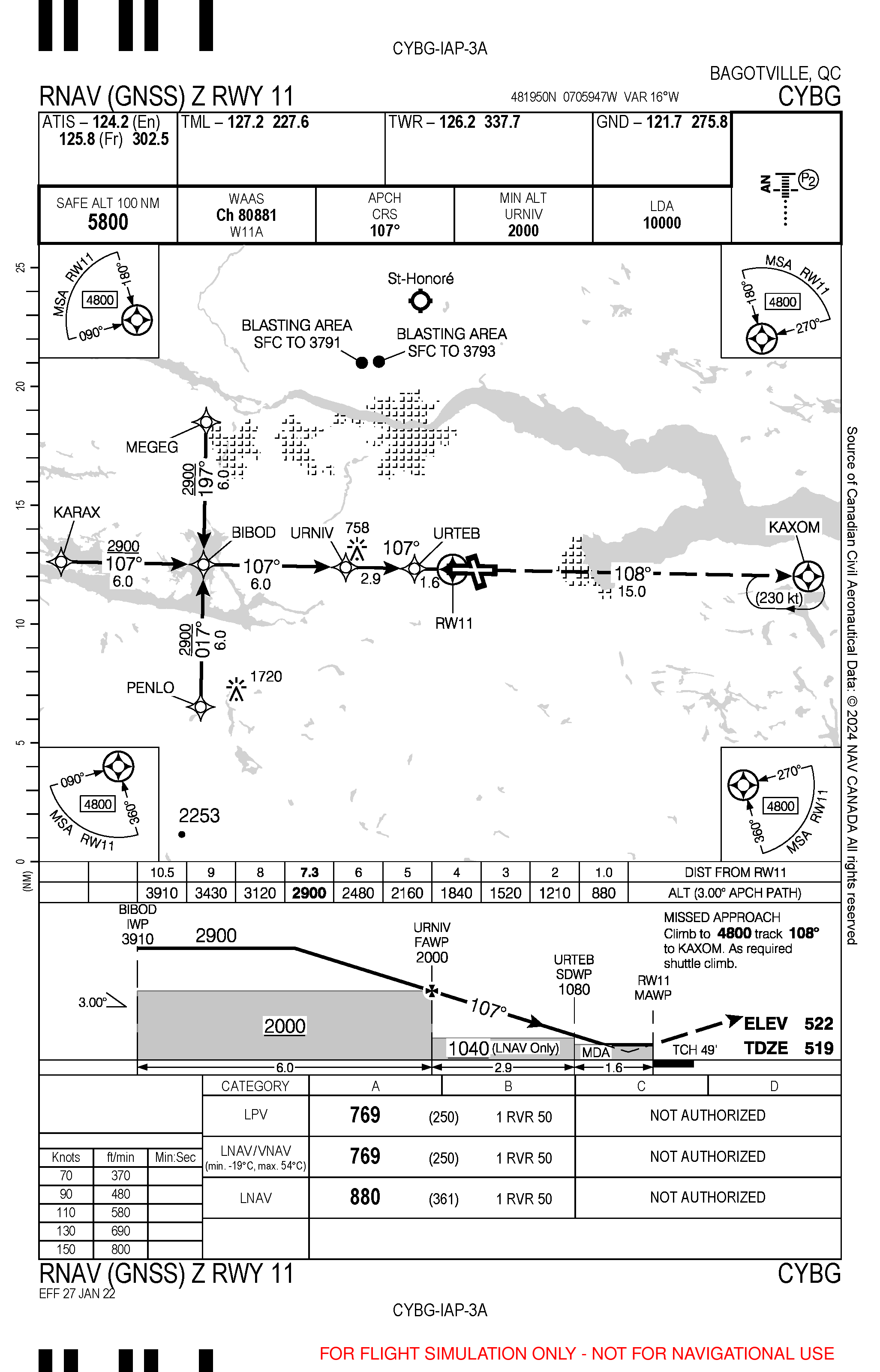

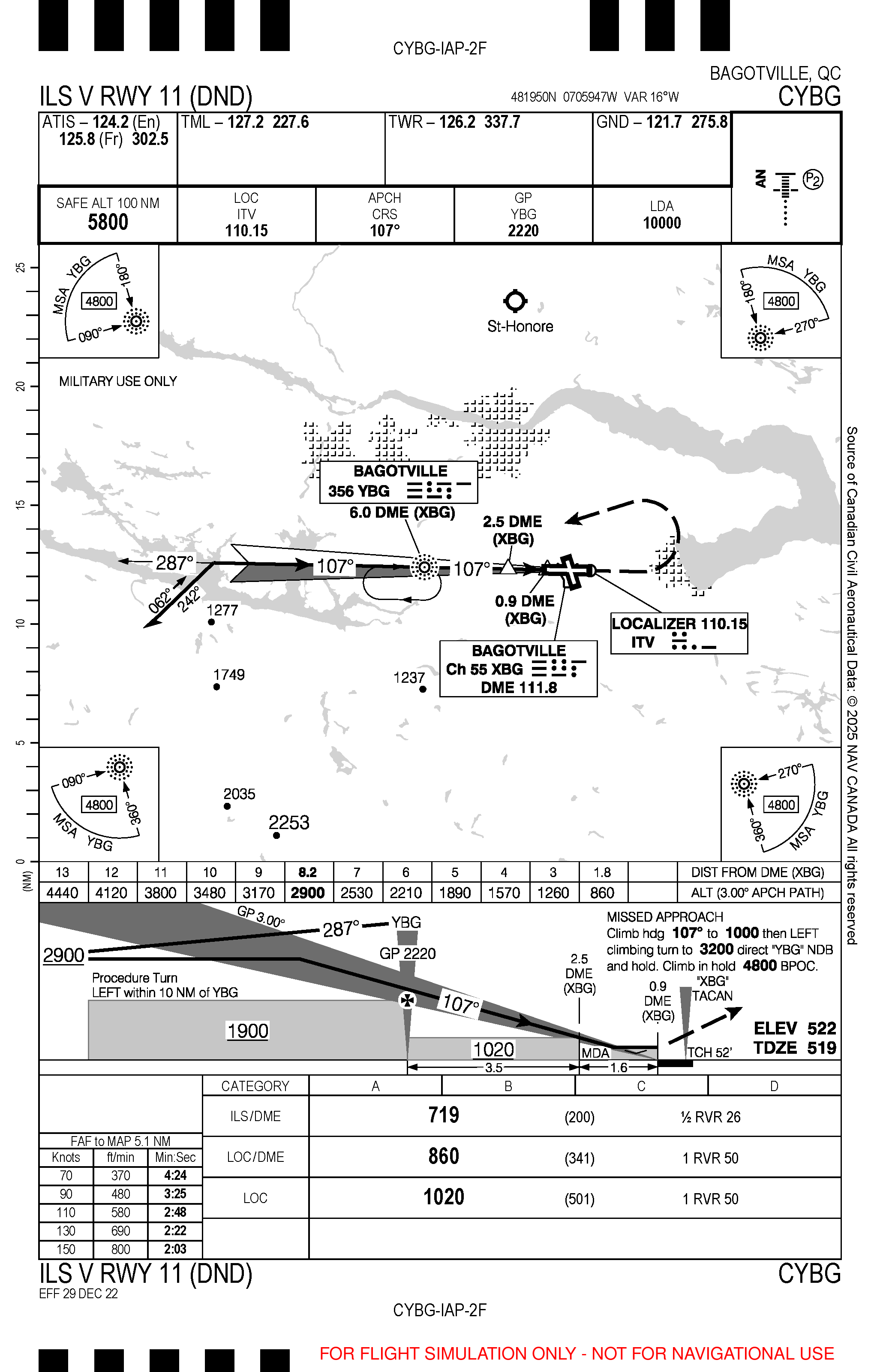

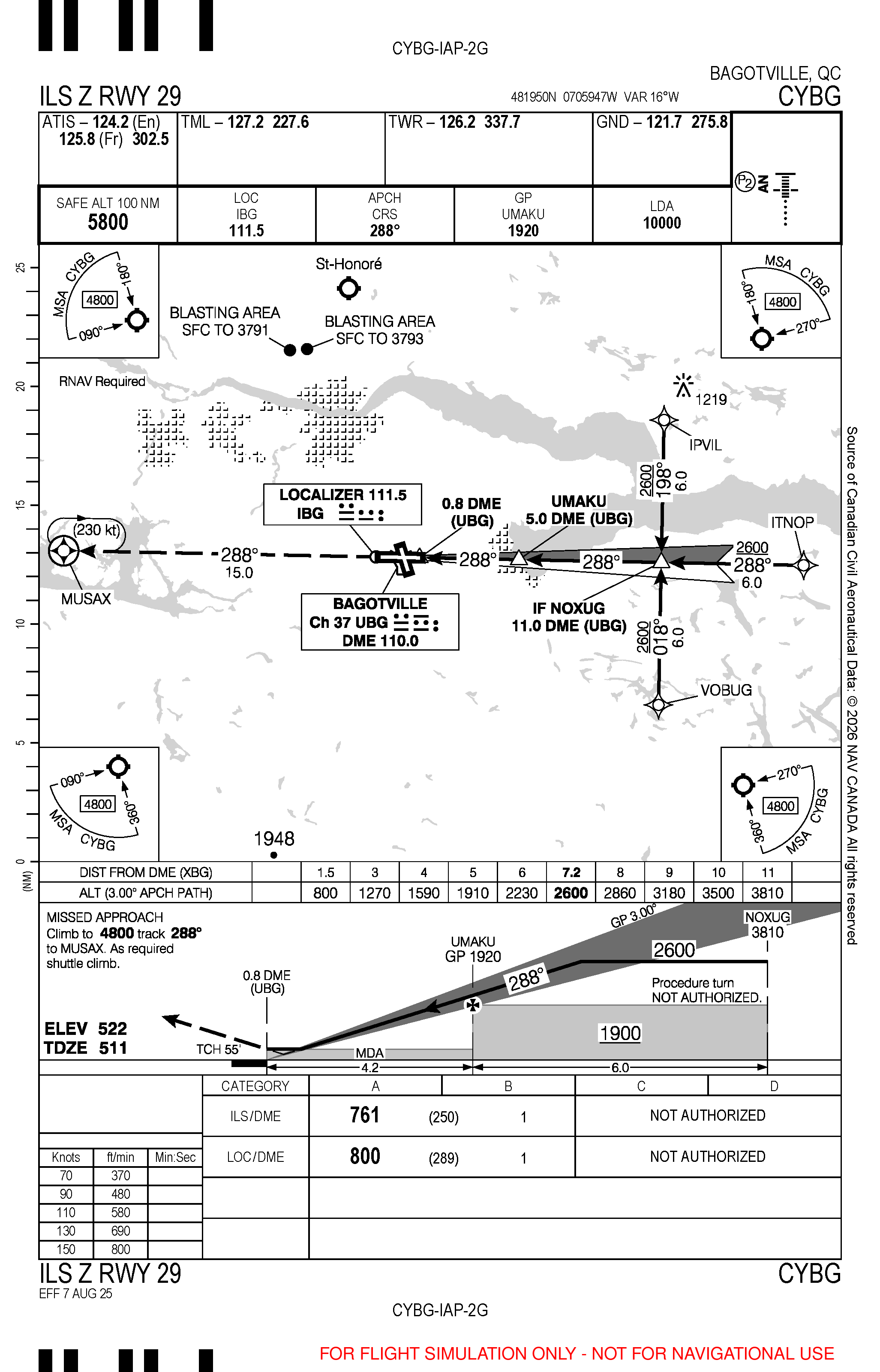

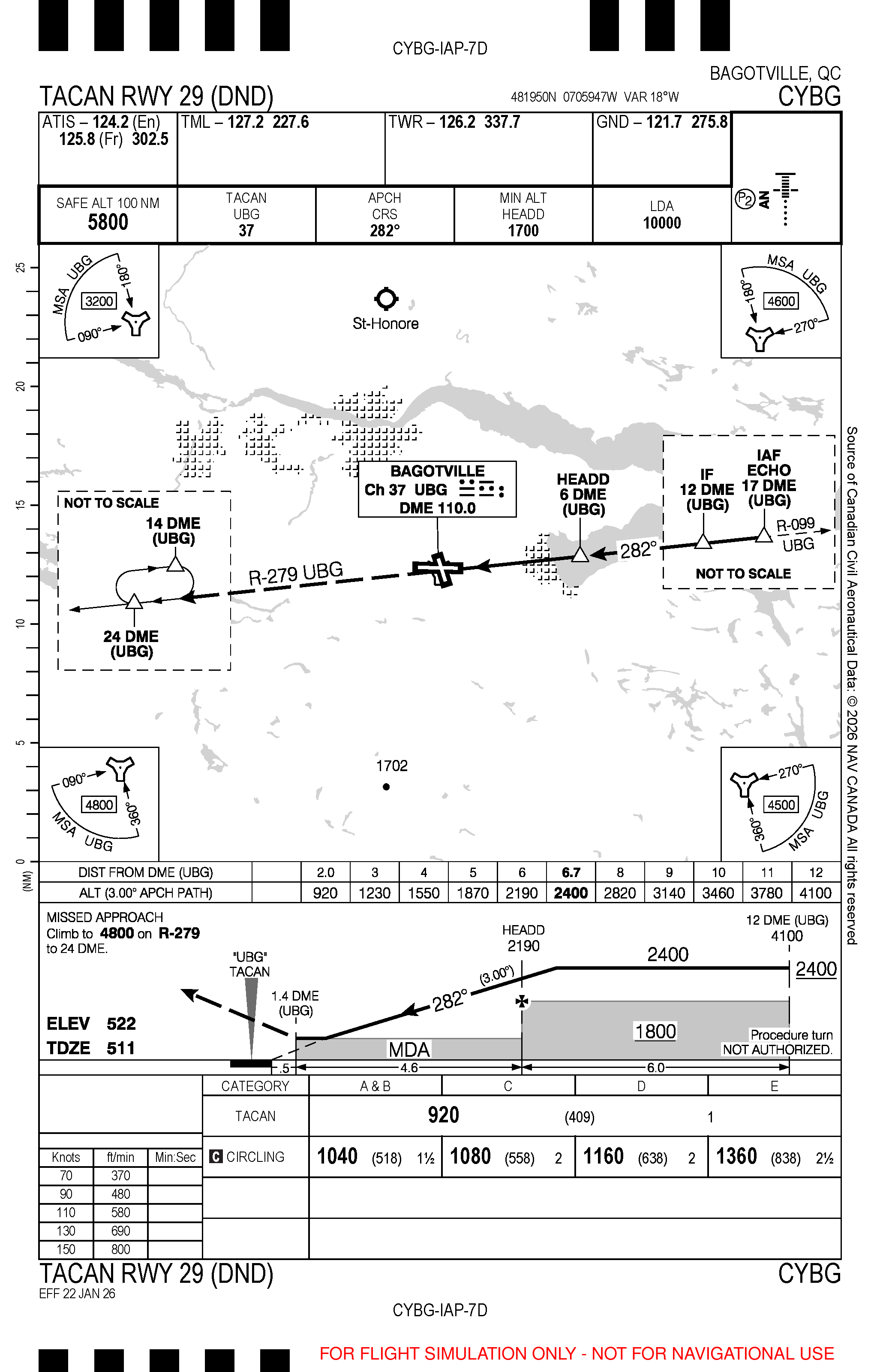

Extra information Display Charts
Runway Length Width Surface Elevation
11 10000 ft 150 ft ASP/CON 519 ft
18 6000 ft 150 ft ASP 520 ft
29 10000 ft 150 ft ASP/CON 511 ft
36 6000 ft 150 ft ASP 522 ft

Mandatory Routes

CFB Bagotville

Direction Destination Level Remark Type Route
DEP TO CYQB H&L RNAV IGSAS TADES KAROT ARR
DEP TO CYUL H&L RNAV MIVAX OBTEK XORLO ROCKT ARR
